ättaGard Bollard

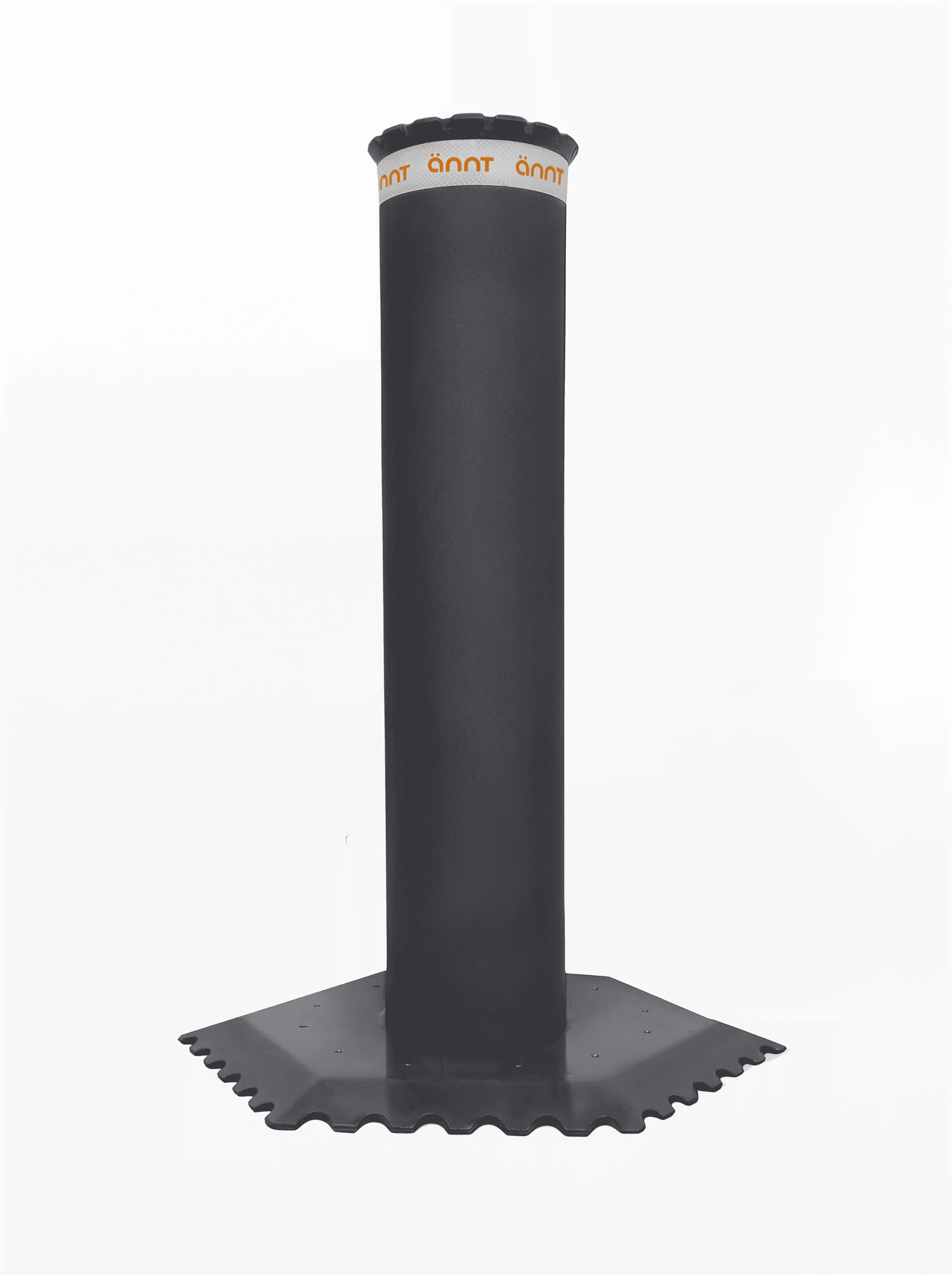

ättaGard Bollard by ANNT - Anthracite Grey surface mounted bollard

The ättaGard is a heavy-duty, surface-mounted bollard engineered for high-impact protection without excavation. Built with a 10″ NPS steel pipe and a serrated base plate that locks into the ground surface, the ättaGard delivers serious vehicle protection where traditional embedded bollards aren’t feasible.

Designed and manufactured by ANNT Bollards — a brand of Ontario Bollards Inc. — the ättaGard is built for storefronts, EV charger protection, daycares, parking facilities, and any location where permanent perimeter protection is required.

ättaGard Specifications

Specification Value
Material Steel
Pipe 10in NPS Pipe
Outer Diameter (O.D.) 273mm
Inner Diameter (I.D.) 248mm
Wall Thickness 22mm at base
Overall Height 1250mm
Base Plate Width 924mm O.A.
Base Plate Serrated steel plate (Platev03) — M12 anchor holes through
Finish Anthracite Grey powder coat
Weight 234.1 kg
Installation Surface mounted — no excavation required

Download Spec Sheet

Download Brochure

ättaGard Connection — Dual Bollard Connector

attaGard Connection - dual bollard connector plate

The ättaGard Connection joins two ättaGard bollards with a checkered steel base connector, creating a continuous barrier line. Ideal for wider entry points, driveways, or locations requiring extended perimeter coverage without additional anchoring.

Specification Value
Components 1 x Base Connector (checkered steel) + 2 x ättaGard bollards
Overall Width 2520mm
Bollard Centre-to-Centre 1447mm
Gap Between Bases 865mm (bridged by connector)
Overall Height 1250mm
Pipe Diameter Ø273mm O.D.
Connection M12 set screw holes
Finish Anthracite Grey
Total Weight 503.1 kg (full assembly)

ättaMover — Manual Bollard Mover

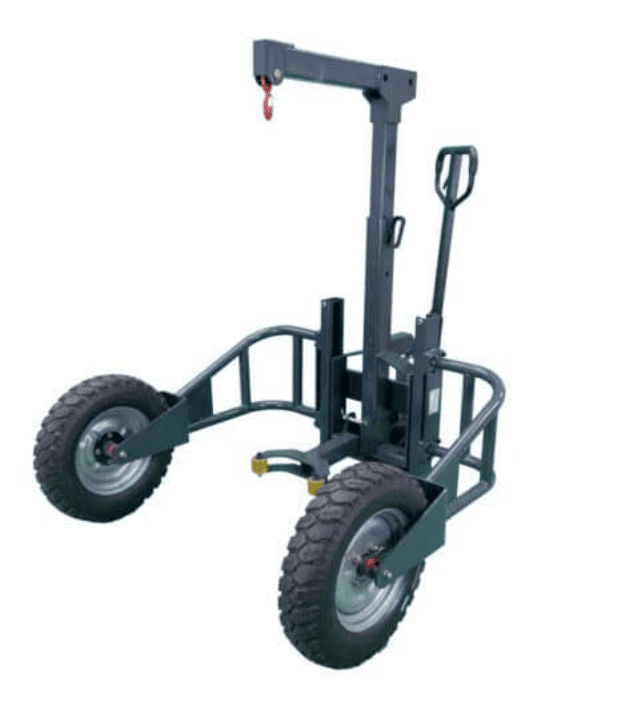

ättaMover manual bollard mover

The ättaMover is a purpose-built manual lift and transport tool for the ättaGard bollard. It allows a single operator to safely lift, move, and reposition an ättaGard without heavy equipment. Essential for sites where the bollard needs to be relocated or repositioned.

Specification Value
Power Unit Manual
Load Capacity 500 kg
Max Lifting Height 100mm
Attachment Hook
Front Wheel Diameter 450mm
Rear Wheel Diameter 250mm
Overall Length 1657mm
Overall Width 1418mm
Overall Height 1650mm
Net Weight 200 kg
Warranty 12 months

Download ättaMover Spec Sheet

Request a Quote

ättaGard Portable Bollard – Flexible, Secure, and Versatile Protection Solution

Enhance safety and security with the innovative ättaGard portable bollard system, designed for versatile, reliable perimeter protection. Ideal for urban environments, commercial premises, event spaces, and more, ättaGard bollards deliver adaptable security tailored to your exact needs.

The modular design of ättaGard bollards allows them to be deployed individually, in connected rows, offset patterns, or custom configurations. Whether securing narrow streets, bike paths, sidewalks, or expansive areas, each module offers effective, standards-compliant protection. With ättaGard, barriers of unlimited width are achievable, including specialized arrangements or defined access points for emergency and rescue vehicles.

One key advantage of ättaGard bollards is their unobstructed visibility and preservation of clear escape routes, ensuring pedestrian safety and compliance with emergency safety standards. Lightweight yet robust, the bollards offer easy installation, repositioning, and storage, making them an optimal solution for both temporary and permanent applications.

Choose ättaGard portable bollards to effortlessly create tailored security layouts that seamlessly blend safety, functionality, and accessibility. Protect your property and people without compromising convenience or aesthetics.
